Introduction

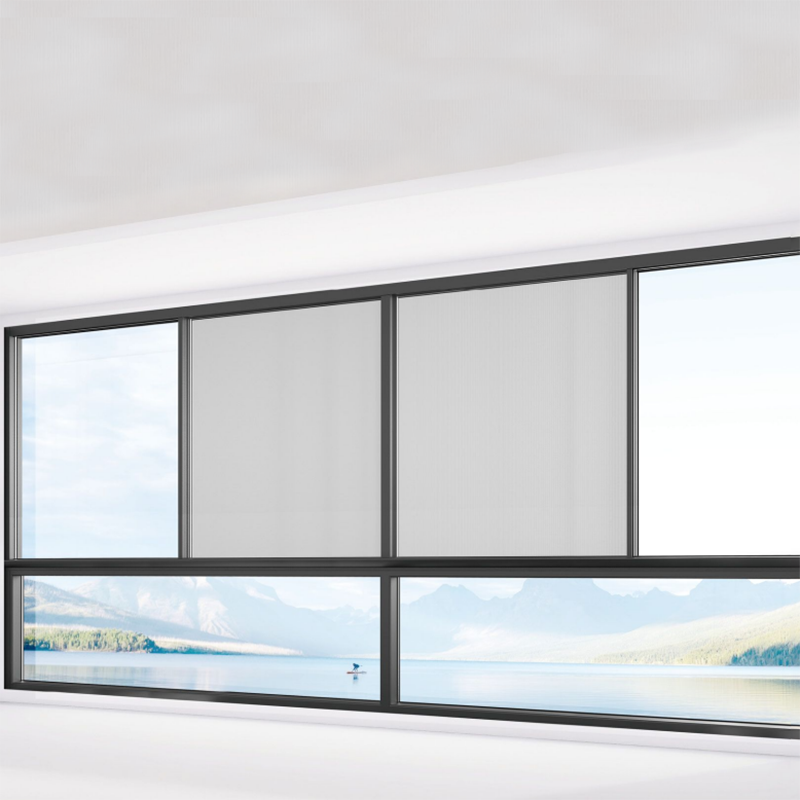

Window for Horizontal Sliding Window is a precision-engineered sliding window solution designed to replace existing horizontal sash systems with minimal disruption. It is ideal for commercial, high-rise residential, and renovation projects requiring improved performance.
Product Features
Easy Retrofit
Designed for quick upgrades without full frame demolition - accommodates 35–65 mm frame depths with ±4 mm adjustment tolerance.
Effortless Operation
Self-lubricating nylon bearings and vertical roller alignment ensure smooth horizontal sliding with single sash operating force ≤ 25N.
Stable Structure
Reinforced 8 mm frame corners resist concentrated impacts over 800 N without deformation.
Sound & Thermal Insulation
Triple Low-E insulated glass isolates external noise (42 dB reduction) and blocks heat transfer (U-value ~0.58 W/m²K), improving indoor comfort.
Critical Performance Parameters
| Metric | Performance Data | Industry Standard |
| U-Value | 0.58 W/m²K | 1.3 W/m²K |
| Air Infiltration | ≤0.6 cfm/ft² @ 75Pa | 1.8 cfm/ft² |
| Max Pane Dimensions | 1.8m x 1.4m | 1.5m x 1.2m |
| Operational Force | <25N per sash | 45N |
| Sound Reduction | 42 dB (triple glazed) | 32 dB |
These window for horizontal sliding window units exceed ASTM E283 and EN 14351-1 standards.
Customization
• Glazing Options: Hurricane-rated laminated glass, 49 dB acoustic packages, UV-stable historic tints.
• Accessibility Features: Low-force opening models (≈15 N), ADA-compliant low sills (< 20 mm).
• Profile: Custom profile designs, bespoke finishes.
Application
High-Rise Retrofit:
○ Scaffold-free replacement using vacuum lifts
○ Night installation protocols
Healthcare Facilities:
○ Antimicrobial handle options (ISO 22196 certified)
Coastal Properties:
○ Hurricane-rated laminated glass
Heritage Buildings:
○ Replication glass (UV-stable historic tints)
Noise-Sensitive Sites:
○ Asymmetric triple glazing (49dB reduction)
why choose us
OEM & ODM Service
DESLANO provide full customization support for our products. Whether you need private labeling, exclusive models, or full product development, our experienced engineering and design team can turn your ideas into reality
01
Reliable Quality & Certifications
All DESLANO products meet international safety and performance standards, including CE, ISO9001, and SGS testing. We conduct 100% inspections before delivery, including checks on dimensions, glass strength, coating thickness, and sealing performance.
02
Global Project Experience
DESLANO has completed projects in Germany, Italy, the USA, New Zealand, and more, which has earned us long-term trust from contractors, builders, and distributors. We are well-versed in regional standards and aesthetic preferences, and our international project team provides localized solutions for both residential and commercial use.
03
Strong Manufacturing Capability
DESLANO operates a modern production base equipped with advanced aluminum extrusion, glass cutting, tempering, and powder coating lines. Our factory covers over 20,000 square meters, enabling us to efficiently handle both large-scale projects and customized small-batch orders.
04
After-Sales Support
Our professional sales and service teams respond within 24 hours, providing technical support, installation guidance, and spare part assistance when needed. For long-term partners, we also offer priority production scheduling and customized logistics options to ensure timely delivery worldwide.
05
FAQ
Q1. What installation conditions are required for retrofit projects?
A1. The system fits existing frames with 35–65 mm depth and uses adjustable wedges to avoid full frame demolition.
Q2. What sizes can be supplied?
A2. Maximum standard pane size is 1.8 m × 1.4 m; custom sizes can be produced on request.
Q3. Can the product withstand high wind loads?
A3. Yes - engineered with structural reinforcement and performance verified to withstand 150 mph winds (AS/NZS 4284 compliant).
Q4. What after-sales support is available for projects?
A4. Technical documentation, installation guidelines, and performance test data can be provided.
From Toronto condos to Dubai hotels, our precision-engineered window for horizontal sliding window systems deliver energy efficiency, security, and seamless retrofits. Request frame compatibility checklists or hurricane certification documents today.
